GPON SFU 1GE

Overview

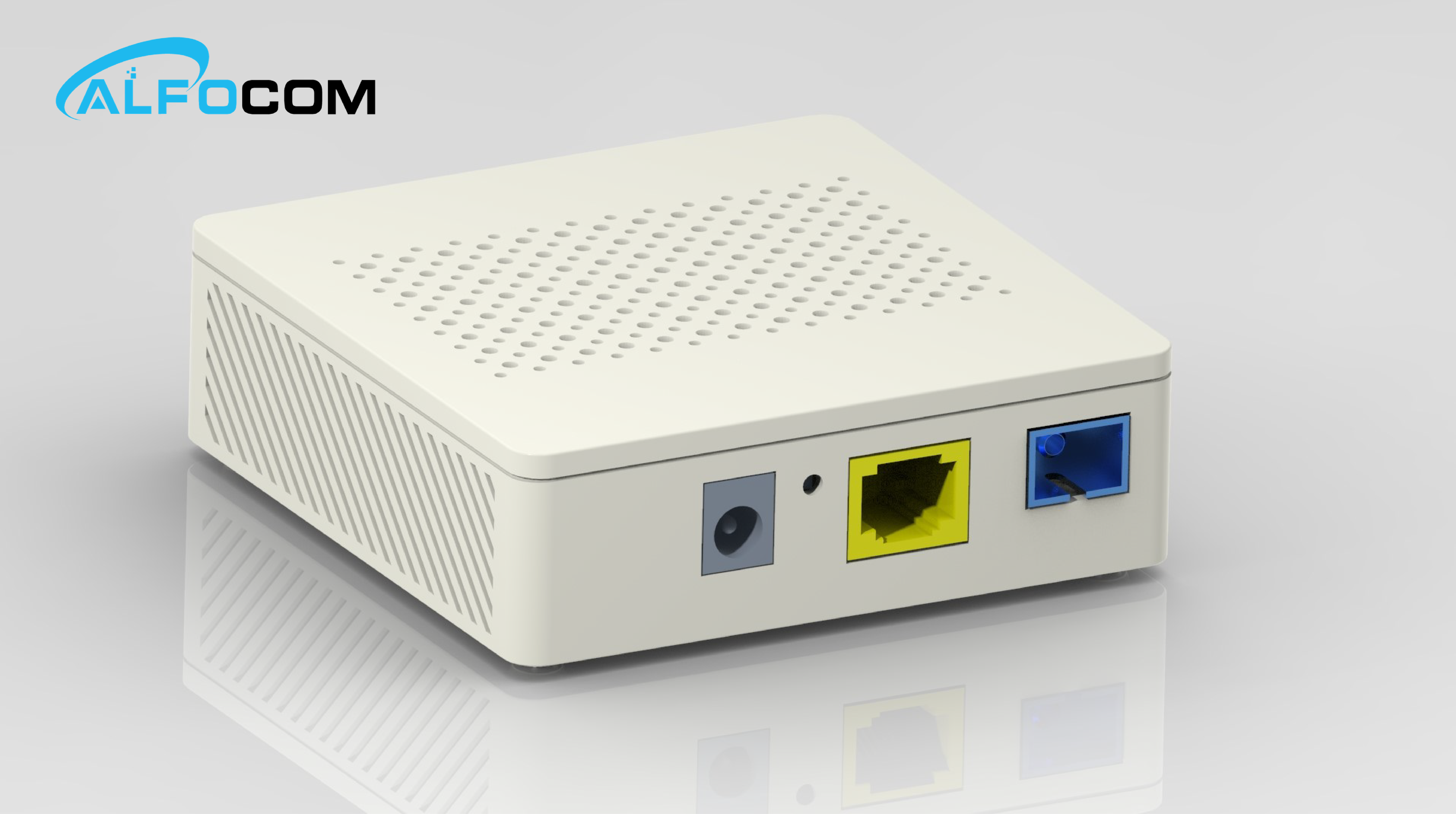

To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the GPON ONT AFGN-01GS for SFU (Single Family Unit) incorporates interoperability, key customers’ specific requirements and cost-efficiency.
Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface, the AFGN-01GS ONT supports the full Triple Play of services including video, and high speed internet access. Compliant with standard OMCI definition, ONT OnAccess AFGN-01GS is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

Interface

Type	10/100/1000 Base-T interface
AFGN-01GS	1

Dimensions

Ÿ   107x85x26(mm) (W x D x H)

Power Supply

Ÿ   +12V (feed via external AC/DC adapter)

Ÿ   2-PIN power adaptor input

Ÿ   Dying Gasp support

Ÿ   Power switch

Ÿ   Power Consumption: less than 4W

Working Environment

Ÿ   Temperature: 0℃ ~ 50℃

Ÿ   Humidity: 5% ~ 95% relative humidity

Safety & EMI

Ÿ   CE certificate

Installation

Ÿ   Desktop mounting

GPON Interface

Ÿ   Compliant with ITU-T G.984 GPON standards

Ÿ   SFF type laser, SC/PC connector

Ÿ   1.244 Gbps Burst Mode Upstream Transmitter

Ÿ   2.488 Gbps Downstream Receiver

Ÿ   Compliant with ITU-T G.984.2 Amd1, Class B+

Ÿ   0.5dBm ~+5dBm launch power, -28 dBm sensitivity, and -8dBm overload

Ÿ   Wavelengths: US 1310nm, DS 1490nm

Ÿ   Laser compliant with FCC 47 CFR Part 15, Class B, and FDA 21 CFR 1040.10 and 1040.11, Class I, ONT support Class C or Class C+ optics as an option

Ÿ   Support G.984.5 Blocking Filter as an option

Ÿ   Multiple T-CONTs per device

Ÿ   Multiple GEM Ports per device

Ÿ   Flexible mapping between GEM Ports and T-CONT

Ÿ   Activation with automatic discovered SN and password in conformance with ITU-T G.984.3

Ÿ   AES-128 Decryption with key generation and switching

Ÿ   FEC (Forward Error Correction) in both directions

Ÿ   DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)

Ÿ   802.1p mapper service profile on U/S

Ÿ   Mapping of GEM Ports into a T-CONT with priority queues based scheduling

Ÿ   Support Multicast GEM port and incidental broadcast GEM port

Ethernet Interface

Ÿ   10/100/1000 Base-T interface with RJ-45 connectors

Ÿ   Ethernet port auto negotiation or manual configuration

Ÿ   Hardware priority queues on the downstream direction in support of CoS

Ÿ   802.1D bridging

Ÿ   VLAN tagging/detagging per Ethernet port

Ÿ   VLAN stacking (Q-in-Q) and VLAN Translation

Ÿ   Broadcast/Multicast rate limiting

LED

Ÿ   Power

Ÿ   ALARM

Ÿ   Connection

Ÿ   Ethernet

OAM

Ÿ   Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.984.4 and G.983.2

Ÿ   Alarming and AVC report, performance monitoring

Ÿ   Remotely software image download over OMCI, as well as activation and rebooting
