8FE Reverse POE ONU

8FE ONU
SC/APC UPC
Wavelengths: US 1310nm, DS 1490nm
Support Reverse POE
Description: 8FE Reverse POE EPON ONU
Inquiry

Overview

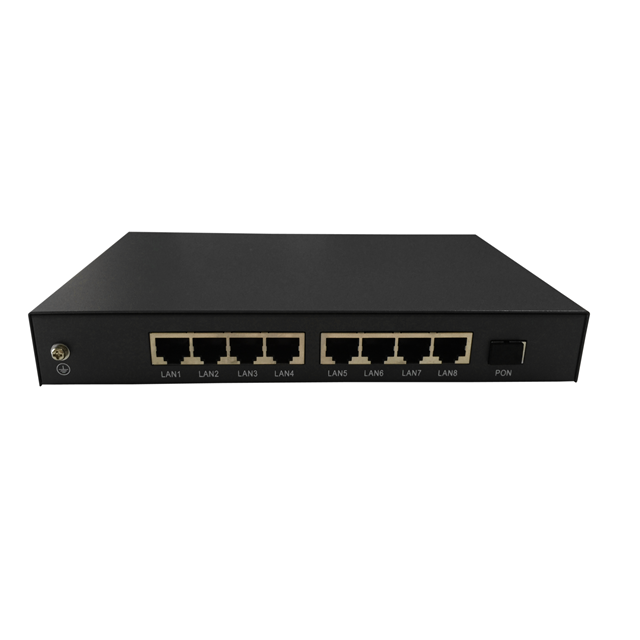

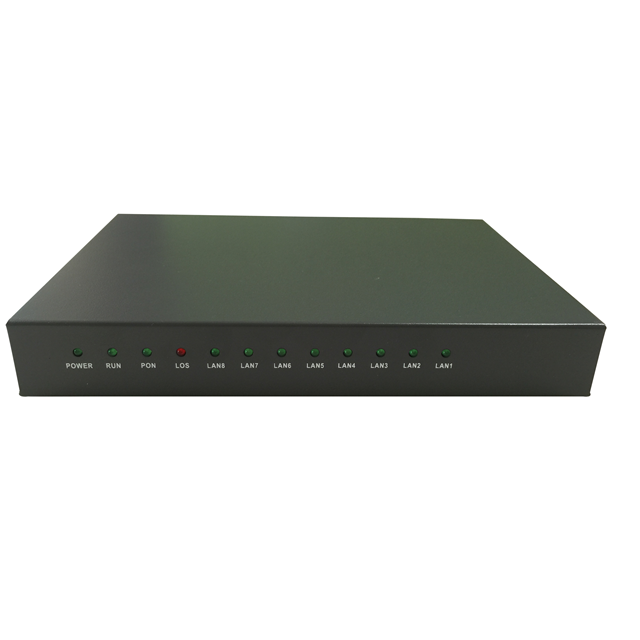

AFEN-08-RP Reverse Power over Ethernet (Reverse PoE for short) is an industry-leading remote multi dwelling unit (MDU) launched by ALFOCOM, which, on a passive optical network(PON), facilitates power supply for Fiber To The Building (FTTB)installation in corridors, providing broadband network access for families and small to medium enterprises by using category-5 cables routed in the building. The AFEN-08-RP Reverse PoE is a box-type device, providing 1 EPON ports and eight LAN user ports, and is powered by the power sourcing equipment (PSE) deployed in users' residences. The AFEN-08-RP Reverse PoE is applied in scenarios where there is no alternating current (AC) power supply in corridors, featuring easy installation and maintenance, broad temperature range, low power consumption, mute design, high stability, environment-friendlily, and energy conservation.

Features

Broadcom TK3715 EPON Chipset

8* 10/100 Base-T Ethernet interface

Satisfy IEEE 802.3U standard, compatible with IEEE802.3ah

1* EPON uplink port

Reverse POE Power supply: POE pin : 45+,78- ; POE Voltage: 48V(DC)

Specification

Uplink port	1 EPON port(SC/PC,SFF)	EPON	• Compatible with CTC specification, • Compatible with 802.3ah • 8 queue and SP or WRR scheduling • Support Dying Gasp
Service Port	8 10/100 Base-T Ethernet interface (auto-sensing)	L2	• Port auto negotiation • MDI/MDIX • 802.3x flow control • Per port ingress/egress rate limit • Storm control • MAC limit per port, Port isloation, STP
Power Consumption	< 9W	VLAN	• 802.1Q vlan • SVL • Vlan ID:1-4094 • CTC vlan
Power Supply	All ports support client-power supply The first port can supply power and be powered. It can supply -48v power through the network cable The average distribution of power into the multiple terminal users Port power calibration feature	MAC	• 1K MAC table • Static MAC address entry • Black list • Configurable MAC aging time
Dimension	205mm×125mm×28mm(W x D x H)	Multicast	• IGMP snooping • 256 multicast entry • CTC controllable snooping
Operation Environment	Temperature:-10℃ ~ 55℃ Humidity: 5% ~75% relative humidity	OAM	• CLI • Telnet • Web • Firmware Remote & Local upgrade
QoS	Classification: DA MAC,SA MAC, Vlan pri, Vlan id, Ether type, DA IP, SA IP,DA port ,SA Port 802.1p/DSCP/TOS Scheduling: SP, WRR
