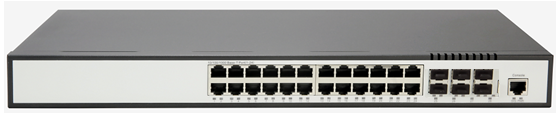

AFS5750-30TP 2.5G PoE L3 Switch

AFS5750-30TP 24*2.5G Ports with 10 Gigabit uplink PoE switch

Features:

Ÿ 24 *2.5Gports (with PoE), supportIEEE 802.3af/atstandard,10 Gigabit optical ports can beadaptive to Gigabit;

Ÿ Ultra-high switching capacity, support full port wire-speed forwarding performance;

Ÿ Support weak Layer 3 access, support full port hardware Layer 3 wire-speed forwarding performance;

Ÿ High-performance low-power network processor, support for green Ethernet line sleep capability, low device power consumption;

Ÿ Support IPv4/IPv6 dual-stack platform, support RIP/OSPF and other routing protocols

Ÿ Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols;

Ÿ Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions

Ÿ Ethernet OAM 802 is supported3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms;

Ÿ Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication

Ÿ Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand

Ÿ Support IPv4/IPv6 static routing function;

Ÿ Supports multi-port mirroring analysis and service flow-based image analysis.

Ÿ Support static and flexible QinQfunction;

Ÿ Support IPV4/6unicast routing in the policy, support flexible forwarding policy;

Ÿ Supports CLI command line management based on serial port, Telnet, and SSHv2 mode

Ÿ Support RFC1213 SNMP network management;

Ÿ Supports configuration management based on WEB pages;

Product Specifications:

Physical Interface:

Ÿ 10 Gigabit optical port: 6*10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC;

Ÿ PoE ports: 24 Gigabit ports with PoE, support IEEE 802.3af/at standard, type RJ45;

Ÿ Console port: manage serial port, used for command line management, type RS232;

Working environment:

Ÿ Operating temperature: -15C°~55C°;

Ÿ Storage temperature: -40C°~70C°;

Ÿ Relative humidity: 10%~90%, non-condensing;

Power consumption:

Ÿ Power supply specifications: single AC power supply, fixed 400W power supply;

Ÿ Input power: AC: input 90~264V, 47~67Hz;

Ÿ Power consumption of the whole machine: full load power consumption ≤53W, idle power consumption ≤ 25W;

Mechanical structure:

Ÿ Chassis shell: metal shell, air-cooled heat dissipation;

Ÿ Chassis size: dimensions (length * width * height) (mm) 440 * 290 * 44;

Ÿ Installation: Standard 19 inch 1U rackmount installation;
