1U Cassette GPON OLT

  • AFG3416P(16 GPON Ports)
AFG3416P(16 GPON Ports)

AFG3416P(16 GPON Ports)

  • 1U
  • 16 GPON Ports
  • Support 10GE Uplink
  • Support Rich L2/L3 switching function
  • Description: 16 ports GPON OLT, 1U OLT, mini OLT
  • Inquiry

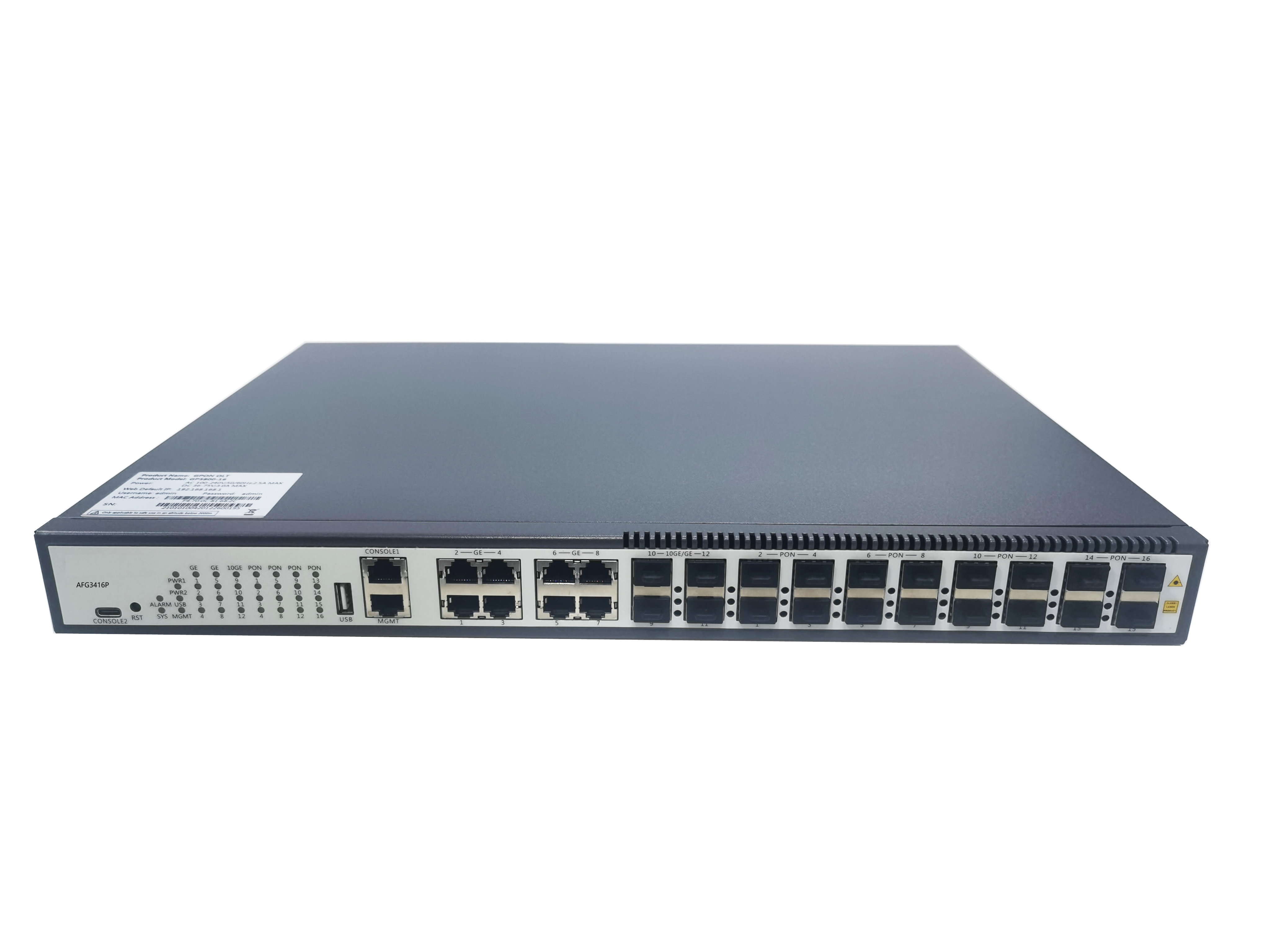

AFG3416P provides 16 GPON ports and 4* GE Combo + 2*10GE SFP+uplink ports to meet for the increasing demand on high-bandwidth from end user, With the 1RU cassette design and redundant 2 slots making AFG3416P to be flexible deployment and multifunctional. Built as the compact GPON OLT platform using Broadcom chipset designed for different type carrier in ISP market, the reliable testing of MTTH and MTTB ensure the AFG3416P working stably and smoothly.

Adopting the industrial advanced technology, AFG3416P support powerful Ethernet services and QoS feature, also SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments.


102Gbps switching capacity

152.52MPPS throughput (IPV4/IPV6)

16 *PON ports, 4* GE Combo and 2*10GE SFP+ uplink ports

AC and DC power redundancy supported

Rich L2/L3 switching function(Static QINQ and Flexible QINQ); Powerful Multicast services capabilities (IGMPV1/V2/V3, IGMP snooping, MVR multicast); Support DHCP option 82 and PPPOE+

Technical Specification

Switching capacity


Throughput (IPv4/IPv6)



16*PON port, 4*GE Combo ports, 2*10GE SFP+

Power redundancy

Dual power supply. Can be double AC, double DC or AC+DC

Power supply

ACInput 100240V,4763Hz;

DCInput -36V-75V;

Power consumption


Outline dimensions

(mm) (W*D*H)


Weight (in maximum configuration)

<= 8KG



Working temperature-15°C55°C

Storage temperature-40°C70°C

Relative humidity10%90%,no condensing

Business Features

PON features


Satisfy ITU -T standard

TR-101 compliant solution for FTTx OLT applications

High splitter rate, each PON port supports 128*ONU ,96*T-CONT

Maximum transmission distance of 20KM

Support uplink FEC, downlink FEC(Forward Error Correction)

ONU identifier authentication :SN /SN+PASSWD

Bandwidth allocation mechanism

5 types of T-CONT bandwidth

Static Bandwidth Allocation

Dynamic Bandwidth Allocation

GPON feature parameter

4096 port-IDs per GPON MAC (Downstream and Upstream)

1024 Alloc -IDs per GPON MAC (Upstream )

L2 features


MAC Black Hole

Port MAC Limit


4K VLAN entries

Port-based/MAC-based/IP subnet-based VLAN

Port-based QinQ and Selective QinQ (StackVLAN)

VLAN Swap and VLAN Remark and VLAN Translate


Based on ONU service flow VLAN add, delete, replace

Spanning tree protocol

IEEE 802.1D Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP)


Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring and traffic mirroring

Security features

User security



IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binds to port and port MAC address filtration

IEEE 802.1x and AAA/Radius authentication

TACACS+ authentification

dhcp anti-attack flood attack automatic suppression

ONU isolation control

Device security

Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

Supports IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location

Plaintext authentication of OSPFRIPv2 and MD5 cryptograph authentication

IP routing


ARP Proxy

DHCP Relay

DHCP Server

Static route



ICMPv6 redirection



Configured Tunnel

6to4 tunnel

IPv6 and IPv4 Tunnels

Service features


Standard and extended ACL

Time Range ACL

Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic

Support packet filtration of L2L7 even deep to 80 bytes of IP packet head


Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark

CAR(Committed Access Rate)Traffic Shaping and flow statistics

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR.

Congestion avoid mechanism,including Tail-Drop and WRED



IGMPv1/v2/v3 Snooping

IGMP Filter

MVR and cross VLAN multicast copy

IGMP Fast leave

IGMP Proxy



MLDv2/MLDv2 Snooping




Loop protection

EAPS and GERP (recover-time <50ms)


Link protection

FlexLink (recover-time <50ms)

RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms)


Device protection

VRRP host backup

Double fault-tolerant backup of host program and configuration files

1+1 power hot backup


Network maintenance

Telnet-based statistics

RFC3176 sFlow


802.3ah Ethernet OAM

RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device management

Command-line interfaceCLI, Console, Telnet

System configuration with SNMPv1/v2/v3

RMON (Remote Monitoring)1/2/3/9 groups of MIB

NTP(Network Time Protocol)

ALFOVIEW Management
