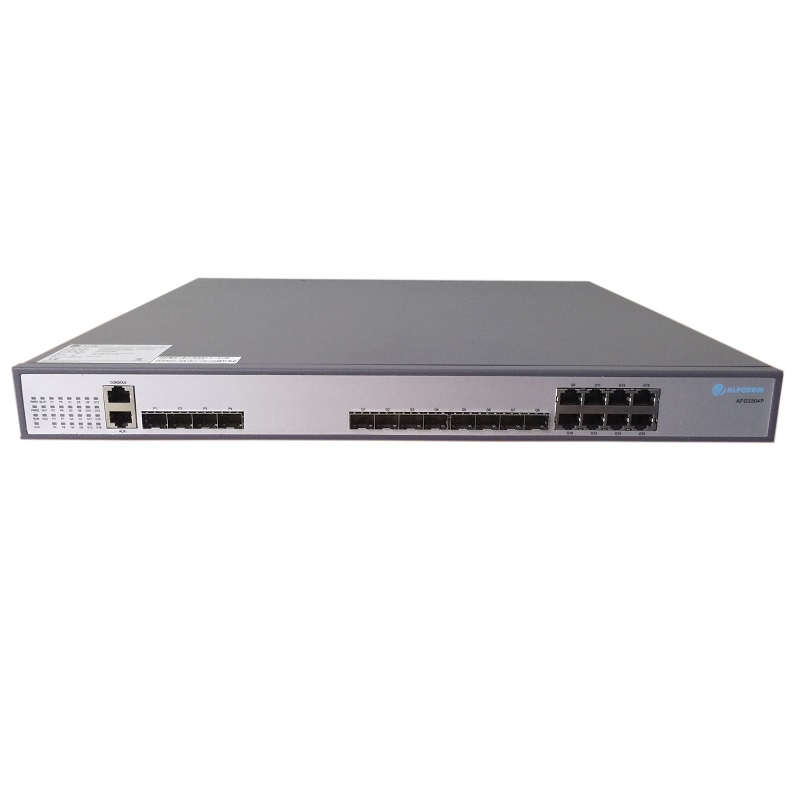

1U Cassette GPON OLT

AFG3304P 4 GPON Ports

1U
4 GPON Ports
Support 10GE Uplink
Support Rich L2/L3 switching function
Description: 4 Ports GPON OLT, 1U OLT, mini OLT, AFG3404P
Inquiry

Overview

Considering the FTTX services deployed in thinly populated regions that ALFOCOM released the AFG3304P, which provides 4 GPON ports basing on powerful software platform, to provide more choices to carrier for cost-effective project construction. AFG3304P adopts the 1RU height cassette design for easy installation, supports 4 GPON ports and 8 GE Based-T ports& 8 GE SFP ports for uplink, the redundant slots for power and 10GE uplink card which ensure the item working stably and smoothly.

AFG3304P adopts the advanced industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments.

Features

102Gbps switching capacity

72.88Mpps throughput (IPV4/IPV6)

4*PON ports, 8*GE FX & 8*GE TX, 2*10GE SFP+

Power redundancy(Double AC/DC, AC&DC)

Multifunctional with L2,L3, Security, VLAN etc

Technical Specification

Servies port	4 GPON ports	GPON	• Satisfy ITU -T standard
Uplink port	8100/1000Base-X (SFP) +810/100/1000Base-T adaptive(RJ45)+1(210GE)(optional)		• Support ITU-T G.984.4 ONT management & Control Interface(OMCI) /TR069
MGMT Port	1 *10/100Base-TX (RJ45)		• Support uplink FEC, downlink FEC(Forward Error Correction)
Switching capacity	102Gbps		• Each PON port supports 128ONU ,384T-CONT
Console Port	1 Console (RS232)		• Support ITU-T G.984.4 ONT management & Control Interface(OMCI) /TR069
VLAN	4K	L2	• MAC Black Hole, Port MAC Limit • 4K VLAN entries • Port/subnet/Mac-based VLAN •Port-based QinQ and Selective QinQ
Throughput	75.88MPPS(IPV4/IPV6)	L3	• IPv4 routing / IPv6 routing • RIPv1/v2, OSPFv2 • Virtual Router Redundancy Protocol (VRRP)
Power supply	AC:Input 100～240V, 47～63Hz DC:Input -36V～-72V(Power redundancy)	Multicast	• IGMPv1/v2/v3 • IGMP snooping • IGMP filtering and throttling • Multicast VLAN Registration (MVR)
Power consumption	<=80W	Management	• Serial / Telnet (CLI) • SNMPv1/v2/v3 • DHCP server, relay agent with option82 • Syslog, Port Mirroring
Dimension	442mm×380mm×44mm	Security	• Secure Shell (SSH) v1/v2 • 802.1x RADIUS, TACACS+ authentication • SNMP v3 encrypted management
Operating environment	Working temperature： -15°C～55°C Storage temperature： -40°C～70°C Relative humidity： 10%～90%， no condensing	QOS	• SP, WRR and SP+WRR • CAR(Committed Access Rate)、Traffic Shaping and flow statistics • 802.1P, DSCP priority and Remark • Rate-limit、flow monitor and two-speed tri-color
