EPON ONU

  • EPON ONU 4FE with POE

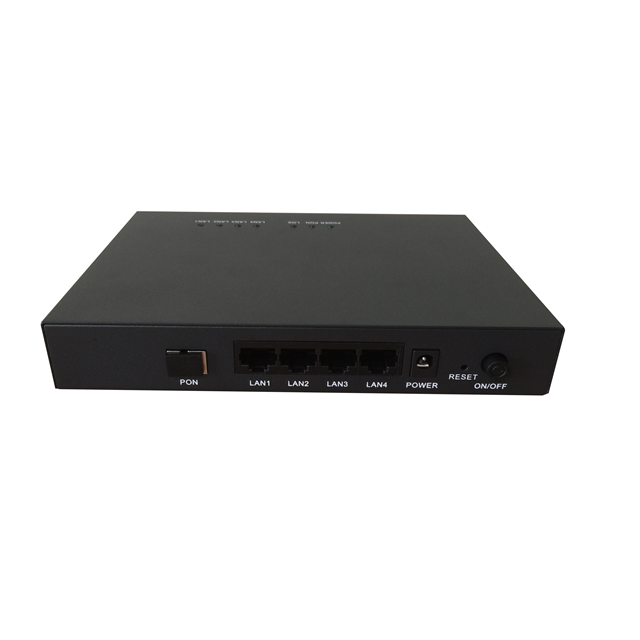

EPON ONU 4FE with POE

EPON ONU 4FE with POE

  • 4FE EPON ONU
  • SC/APC UPC
  • Wavelengths: US 1310nm, DS 1490nm
  • Support POE
  • Description: EPON ONU 4FE with POE
  • Inquiry

Overview

As a Single Family Unit AFEN-04MP is designed for EPON ONU device with plastic shell. AFEN-04MP EPON ONU satisfies IEEE 802.3u standard and supports 100M access to the user side. Support POE, It is a low cost and high speed ONU access device installing in the indoor and corridor with the deployment of FTTH, FTTO, FTTB.

AFEN-04MP transmits data and digital video by flexible PON network structure. It provides uplink speed rate of 1Gb/s, downlink speed rate of 1Gb/s to share high speed bandwidth for users.


Features

4*10/100 Base-T Ethernet interface

Satisfy IEEE 802.3U standard, compatible with IEEE802.3ah

EPON uplink port

4K MAC table

Support POE

Plastic shell for indoor installation

Specification

Uplink port

1 EPON port(SC/PC,SFF)

EPON

• Compatible with CTC specification,

• Compatible with 802.3ah
• 8 queue and SP or WRR scheduling
• Support Dying Gasp

Service Port

4*   10/100 Base-T Ethernet interface (auto-sensing), with POE service

L2

• Port auto negotiation
• MDI/MDIX
• 802.3x flow control
• Per port ingress/egress rate limit
• Storm control
• MAC limit per port, Port isloation, STP

Power Consumption

< 15W

VLAN

• 802.1Q vlan
• SVL
• Vlan ID:1-4094
• CTC vlan

Power Supply

Additional power adaptor:
100-240VAC/50-60Hz input,12VDC/1A output

MAC

• 1K MAC table
• Static MAC address entry
• Black list
• Configurable MAC aging time

Dimension

120mm×90mm×30mm(W x D x H)

Multicast

• IGMP snooping
• 256 multicast entry
• CTC controllable snooping

Operation Environment

Temperature:-10 ~ 55
Humidity: 5% ~75% relative humidity

OAM

• CLI
• Telnet
• Web
• Firmware Remote & Local upgrade

QoS

Classification: DA MAC,SA MAC, Vlan pri, Vlan id, Ether type, DA IP, SA IP,DA port ,SA Port

802.1p/DSCP/TOS

Scheduling: SP, WRR
