GPON ONT

  • HGU 1GE+1FE+wifi+CATV

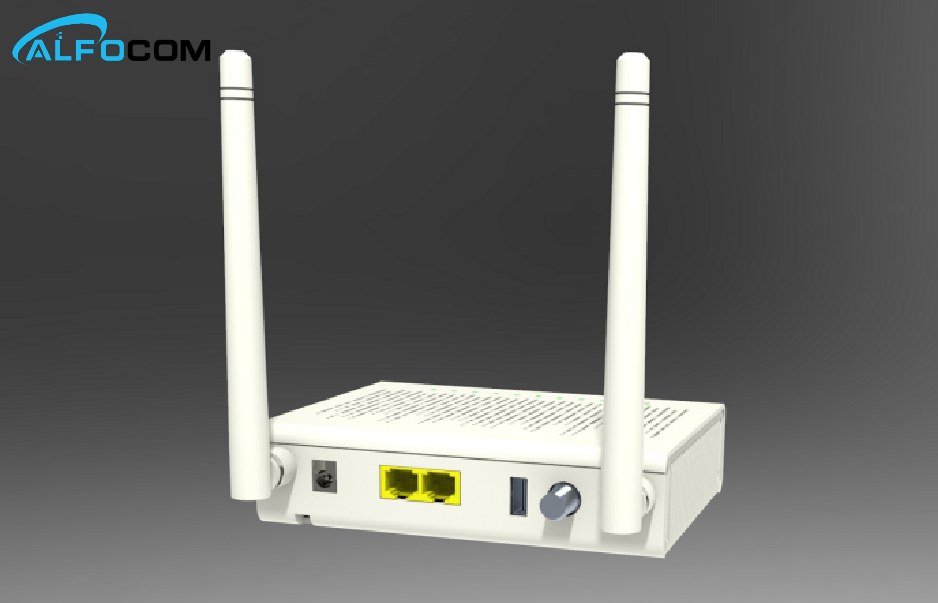

HGU 1GE+1FE+wifi+CATV

HGU 1GE+1FE+wifi+CATV

  • 1GE+1FE+wifi+CATV GPON HGU
  • SC/APC UPC
  • Wavelengths: US 1310nm, DS 1490nm
  • Compatible with 3rd-party OLT
  • Description: 1GE+1FE+wifi+CATV GPON HGU, Cost-effective
  • Inquiry


Overview

To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, the GPON RGU (Residential Gateway Unit) AFGN-02S-TW incorporates interoperability, key customers’ specific requirements and cost-efficiency.

Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface, AFGN-02S-TW supports the full Triple Play of services including video, wifi, and high speed internet access service.

Compliant with standard OMCI definition AFGN-02S-TW is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

Features

ITU-T G.984.x compliant GPON ONT

1 GPON port, 1* 10/100/1000Base-T + 1*10/100Base-T Ethernet interface,

1 RF Video interface and WIFI supported.

4K VLAN, 1K MAC table

Plastic shell for indoor installation

Powerful QOS abilities

Specification

Uplink port

1 GPON port(SC/PC,SFF)

GPON

• Compliant with ITU-T G.984 GPON standards
• Multiple T-CONTs/GEM Ports per device
• Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
• FEC (Forward Error Correction) in both directions
• Support Multicast GEM port and incidental broadcast GEM port

Service Port

1* 10/100/1000Base-T + 1* 10/100 Base-T Ethernet interface,1 RF video interface. Support WIFI

Ethernet Interface

• auto negotiation or manual configuration
• IEEE802.1D and IEEE802.1Q bridging
•VLAN tagging/detagging/QINQ/

VLAN translation

Weight

<400g

WLAN

• Compliant with IEEE 802.11 b/g/n
• Multiple SSIDs , Bandwidth: 2.4GHz, MIMO : 2*2
• 64/128bit wireless encryption protocol (WEP)

Support No-auth, WPA-PSK and WPA2-PSK function with AES, TKIP encryption

Power Consumption

< 10W

QOS

• Port-based/802.1p/IP-TOS priority
• 4 priorities control

Power Supply

Additional power adaptor:
100-240VAC/50-60Hz input,

12VDC/1.5A output

VLAN

• 802.1Q vlan, Port-based VLAN
• VID and PVID
• Configure tag attribution based on port
VLAN

Dimension

206mm x168mmx 39mm (W x D x H)

RF Interface

• RF output level of +18 dBmV
RF Passband: 54 MHz ~ 870 MHz
Switched on/off by remote control

Operation Environment

Temperature:-20 ~ 55
Humidity: 10% ~90% relative humidity

Multicast

• IGMP v2/v3 snooping and IGMP snooping with proxy report

Gateway

•WANconnection(PPPoE,DHCP,Static)
• NAT/NAPT

•Support DHCP server

•Support Port forwarding

OAM

• Standard compliant OMCI  interface as defined by ITU-T G.984.4 and G.983.2
• Compliant to TR-069
