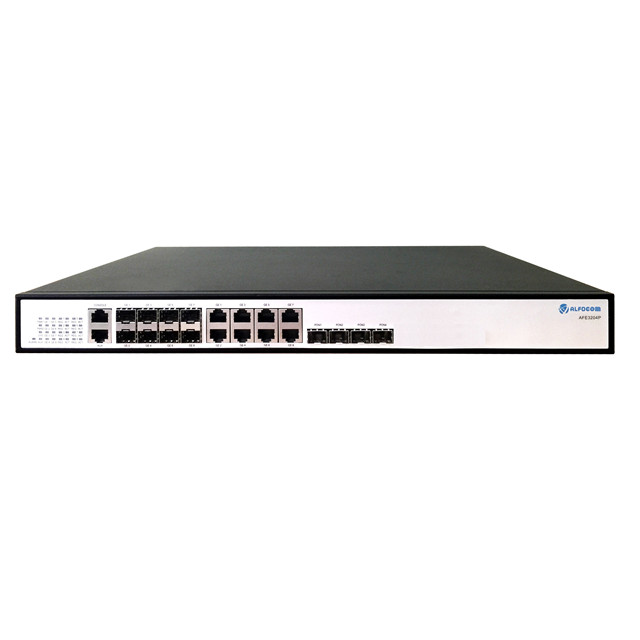

1U Cassette EPON OLT

AFE3304P 4 EPON Ports

1U
4 EPON Ports
Support 10GE Uplink
Support Rich L2/L3 switching function
Description: 4 Ports EPON OLT, 1U OLT, mini OLT, AFE3304P
Inquiry

Overview

As standardized EPON device with 1RU case AFE3304P, AFE3304P adopt newest platform which provides a cost-effective solution for triple-play services delivery in distributed rural residential areas with powerful routing and switching capabilities, AFE3304P is comprised of 4 EPON ports and 8 GE uplink ports, 4 *10GE uplink ports, the height is only 1U for easy installation and space saving. Which whole device supports up to 256 ONU by splitting rate 1:64, the AFE3304P is designed for growing bandwidth demand to assist FTTX project reducing construction cost.

Features

Easy to install due to 1RU case design

Carrier-class stability and network resiliency

Support PON fiber redundancy protection and device redundancy protection protocol

Each PON support 1:64 splitting ratio

128 Gbps switching capacity

95.23Mpps throughput(IPV4/IPV6)

4*EPON ports, 8*GE Base-T & 4*10GE SR/LR/ER uplink ports.

Power redundancy (optional single/Double AC/DC, AC&DC)

Support Rich L2/L3 features (static QINQ and flexible QINQ), powerful multicast services and powerful QOS abilities

Technical Specification

Service port	4 EPON ports	EPON	• IEEE 802.3ah EPON
Uplink port	4GE Base-T & 410GE SR/LR/ER uplink ports		• International CTC GEPON standard
MGMT Port	1 10/100/100Base-TX (RJ45)		• Access 64 terminals for single fibber PON
MGMT Port	1 10/100/100Base-TX (RJ45)		• ONU batch software upgrade, fixed time upgrade, real time upgrade
Switching capacity	128 Gbps		• ONU identifier authentication :MAC/LOID/Hybrid
Switching capacity	128 Gbps		• Uplink and downlink triple churning encrypted function
Port	Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring		ONU terminal legitimacy certification, report illegal ONU registration DBA algorithm
Console Port	1 Console (RS232)		• Standard OAM and extended OAM
VLAN	4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN Port-based QinQ and Selective QinQ (Stack VLAN) VLAN Swap and VLAN Remark and VLAN Translate GVRP Based on ONU service flow VLAN add, delete, replace	L2	• MAC Black Hole, Port MAC Limit • Port/subnet/Mac-based VLAN • Port-based QinQ and Selective QinQ • IEEE 802.1D Spanning Tree Protocol (STP) • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) • IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) • ONU remote loop detecting alarm • LACP
MAC	16K MAC address MAC Black Hole Port MAC Limit	Service features	• Standard and extended ACL, Time Range ACL • SA/DA Classification • Support packet filtration of L2～L7 • Support IPV6 SA/DA Classification, MLD Snooping
Throughput	95.23 MPPS(IPV4/IPV6)	Reliability	• EAPS and GERP (recover-time <50ms) • Loopback-detection • Link protection :FlexLink (recover-time <50ms) RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) BFD • STP/RSTP/MSTP • LACP (recover-time <10ms) • Device protection: VRRP host backup Double fault-tolerant backup of host program and configuration files PON card/fan hot-swappable 1+1 power hot backup
Power supply	AC: Input 90～240V, 47～63Hz DC: Input -36V～-72V(optional Power redundancy)	Multicast	• IGMPv1/v2/v3 • IGMP v1/v2/v3 snooping • IGMP filtering , Proxy , Fast leave and throttling • Multicast VLAN Registration (MVR) •PIM-SM/PIM-DM/PIM-SSM •PIM-SMv6、PIM-DMv6、PIM-SSMv6 •MLDv2/MLDv2 Snooping
Power consumption	<=40W	Management	• Serial / Telnet (CLI) • SNMPv1/v2/v3 • DHCP server, relay agent with option82 • DHCPv4/DHCPv6 snooping /ip-source-guard • Remote Monitoring (RMON) 1/2/3/9 groups of MIB • Syslog, Port Mirroring ALFOView network management
Dimension	440mm×311mm×44mm	Security	• Secure Shell (SSH) v1/v2 • 802.1x RADIUS, TACACS+ authentication • SNMP v3 encrypted management
Operating environment	Working temperature： -10°C～55°C Storage temperature： -40°C～70°C Relative humidity： 10%～90%， no condensing	QoS	• SP, WRR and SP+WRR • CAR(Committed Access Rate), Traffic Shaping and flow statistics • 802.1P, DSCP priority and Remark • Rate-limit、flow monitor and two-speed tri-color
