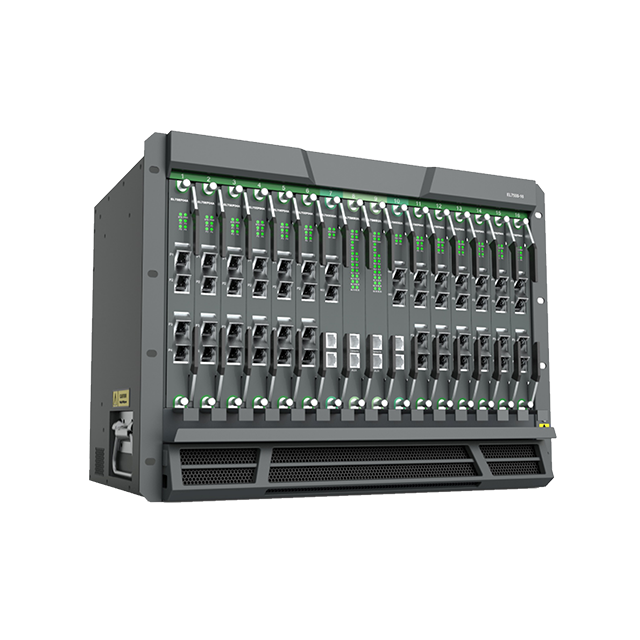

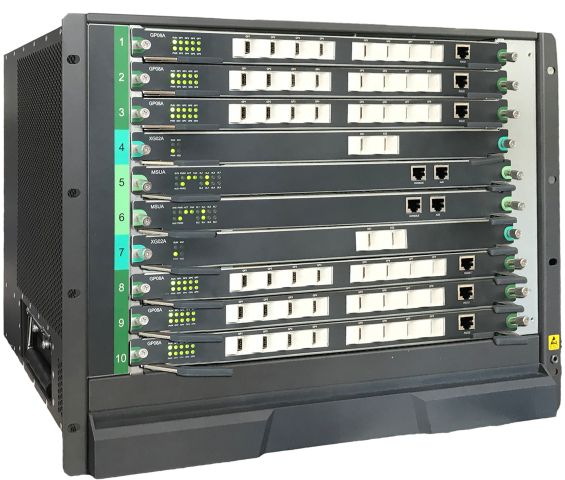

GPON OLT 48 PON is the latest GPON OLT AF7000 launched by ALFOCOM. It uses modularized design concept, combined with advanced industrial design and manufacture technology to provide users with broadband access with moderate density, high reliability, flexible networking, easy installation and maintenance. GPON OLT 48PON offers the IPv4/ IPv6 linear forward capacity, incomparable service performance, operational security attribute. Therefore, it can supply operational BBA network large capacity, high speed and high bandwidth data, voice and video service access for its high reliability, high scalability and super service performance. According to different user scenarios, GPON OLT 48PON can be applied to FTTB, FTTC, FTTH, etc.
□ 8U ultra-compact chassis, high-density line card
□ 1+1 master redundancy, 1+1 power redundancy
□ hot plug fantray, intelligent speed and temperature control
□ 10 *slot ( 8 * line card service slot and 2 *master transmission slot )
□ max 48*GPON Port
□ 400Gbps high-speed backplane
□ Forward and control double - mesh double plane, distributed business processing
□ IPv4/ IPv6 and MPLS hardware wire-speed forwarding capacity
□ full-load power consumption≤ 400 W
Product Specification:
|
Item |
GPON OLT AF7000 |
|
backplane bandwidth |
400Gbps |
|
Switching Capacity |
400Gbps |
|
Forwarding Capacity(Ipv4/Ipv6) |
305Mpps |
|
10 |
|
|
Qty of service slots |
8 |
|
Service port |
downlink maximum 48*GPON（6*GPON line card slot） Uplink maximum 4*10GE SFP+, 8*GE Base-T + 8*GE Base-X |
|
Redundancy Design |
Double power supply redundancy |
|
Power Supply |
DC: input -36V～-72V |
|
Power Consumption |
≤400W |
|
Dimensions (Width x Depth x Height) |
445mm×352.8mm×330mm |
|
Weight (Full-Loaded) |
≤40kg |
|
Environmental Requirements |
Working temperature:-10°C～60°C Storage temperature: -40°C～85°C Relative humidity: 5%～95%,non-condensing |
Service Features:
|
service function |
Support feature |
|
|
GPON Features |
Support G.984 standards, uplink 1.244Gbps, downlink 2.488Gbps; the machine supports max 48 GPON OLT ports; Each GPON port supports 128 ONU, and the whole machine supports max 7168 ONU; Each port supports 4096 GEM port; Each port supports 128 Alloc ID ; Support downlink AES-128 encryption protocol Support uplink and downlink FEC, RS (255239); Support for static bandwidth allocation CBA, dynamic bandwidth allocation DBA; |
|
|
L2 forwarding |
Storage and forwarding mode； Support for dynamic learning of MAC addresses； Aggregation part MAC address 64K; Support MAC address clear, view, search; Support 12KB over length frames； Support the 4K queues queue； The switching capacity is 410Gbps; |
|
|
Support unknown unicast, multicast, broadcast storm suppression; The range of inhibition is 0~32000000 PPS; |
|
|
Spanning Tree |
Support 802.1D, STP, 802.1w, RSTP, 802.1s multi spanning tree protocol |
|
|
traffic control |
Support 802.3X full duplex flow control; Support half duplex back pressure flow control; |
|
|
Port rate-limiting |
Support output port speed limit Rate limiting particle size64Kbps |
|
|
|
Support 128 aggregation groups; Each convergence group has a maximum of 8 ports. Support load balancing based on source MAC addresses, destination MAC addresses, VLAN, Ethernet types, source IP addresses, and destination IP addresses; |
|
|
VLAN |
Support 4K VLAN； Support 32K incoming port VLAN conversion； Support 32K egress VLAN conversion； Support dual 802.1ad flexible QINQ； Each port supports VLAN bindings based on ports, protocols, IP subnets, and priorities; |
|
|
Flexible QINQ |
Support flexible QINQ，S-VLAN supports 4096, and C-VLAN supports 4096; |
|
|
L3forwarding |
Support 16K IPv4 host routing or 8K IPv6 host routing; Support 32K LPM IPv4 routing or 16K LPM IPv6 Routing; Support 8K IPv4 multicast or 4K IPv6 Multicast; |
|
|
Support authentication based ONUMAC address ; Support ONU blacklist; Support user rating management and password; SupportACL packet filtering based on L2 and L3r protocols; Support downlink 128bitAES encryption; |
||
|
System Maintenance |
Provide the RS232 management interface Console; Support remote telnet maintenance; Support DHCP network management; |
Purchase Information:
|
Product name |
Product description |
|
GPON OLT AF7000 |
GPON OLT 48 PON chassis, Rack |
|
AFMUPA |
GPON OLT 48PON,main control panel |
|
AFGP08A |
GPON OLT 48PON,GPON service port, 8*GPON SFP |
|
AFXG02A |
GPON OLT 48PON,XGEcard,2*10GE SFP+ |
|
AFNG01PWR450DC |
|
|
AFNG01PWR450AC |
450W AC power supply module, input AC 90V~264V,47～63Hz |
