EPON ONU

EPON ONU 1GE

1GE EPON SFU
SC/APC UPC
Wavelengths: US 1310nm, DS 1490nm
Compatible with 3rd-party OLT
Description: EPON ONU 1GE, cost effective, dual GPON EPON mode
Inquiry

Overview

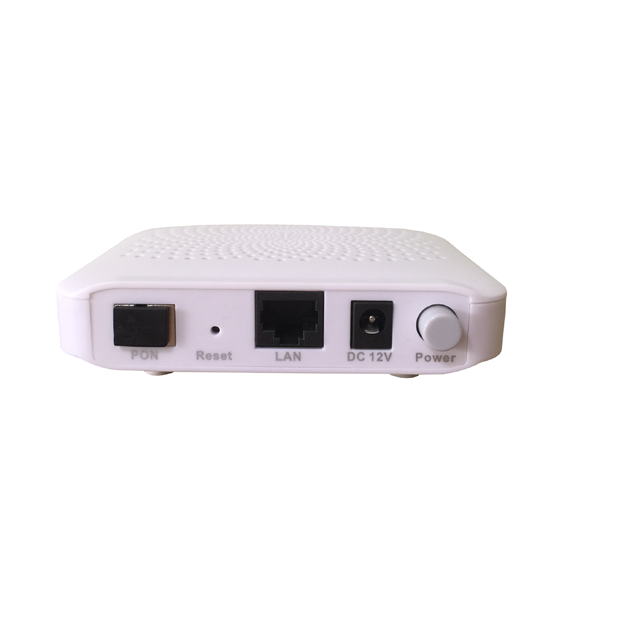

As a Single Family Unit AFEN-01GS is designed for EPON ONU device with plastic shell. AFEN-01GS EPON ONU satisfies IEEE 802.3u standard and supports 1000M access to the user side. It is a low cost and high speed ONU access device installing in the indoor and corridor with the deployment of FTTH, FTTO, FTTB.

AFEN-01GS transmits data, voice and digital video by flexible PON network structure. It provides uplink speed rate of 1Gb/s, downlink speed rate of 1Gb/s to share high speed bandwidth for users.

Features

10/100/1000Base-T Ethernet interface

Satisfy IEEE 802.3U standard, compatible with IEEE802.3ah

EPON uplink port

1K MAC table

Plastic shell for indoor installation

Specification

Uplink port	1 EPON port(SC/PC,SFF)	EPON	• Compatible with CTC specification, • Compatible with 802.3ah • 8 queue and SP or WRR scheduling • Support Dying Gasp
Service Port	1 10/100/1000Base-T Ethernet interface (auto-sensing)	L2	• Port auto negotiation • MDI/MDIX • 802.3x flow control • Per port ingress/egress rate limit • Storm control • MAC limit per port, Port isloation, STP
Power Consumption	< 3W	VLAN	• 802.1Q vlan • SVL • Vlan ID:1-4094 • CTC vlan
Power Supply	Additional power adaptor: 100-240VAC/50-60Hz input,12VDC/1A output	MAC	• 1K MAC table • Static MAC address entry • Black list • Configurable MAC aging time
Dimension	120mm×90mm×30mm(W x D x H)	Multicast	• IGMP snooping • 256 multicast entry • CTC controllable snooping
Operation Environment	Temperature:-10℃ ~ 55℃ Humidity: 5% ~75% relative humidity	OAM	• CLI • Telnet • Web • Firmware Remote & Local upgrade
QoS	Classification: DA MAC,SA MAC, Vlan pri, Vlan id, Ether type, DA IP, SA IP,DA port ,SA Port 802.1p/DSCP/TOS Scheduling: SP, WRR
