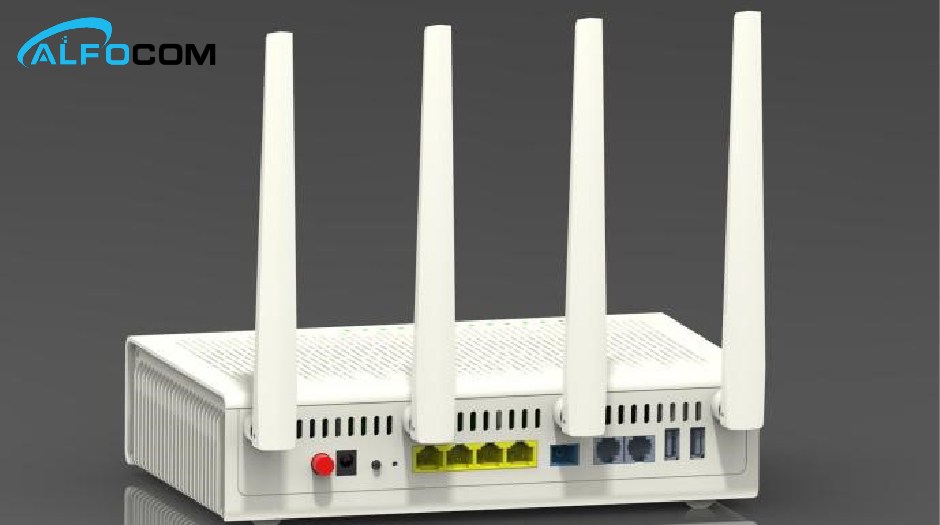

To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, AFGN-04GS-VXW GPON&WIFI6 ONT incorporates interoperability, key customers’ specific requirements and cost-efficiency.
Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface, the GPON ONT supports the full of services including voice, video, and high speed internet access.
AFGN-04GS-VXW integrates GPON, routing, switching, security, WiFi6 (802.11 a/b/g/n/ac/ax), VoIP, and USB functions, and supports security management, content filtering, and WEB graphical management, OAM/OMCI and TR069 network management while satisfying users' basic broadband Internet access. function, which greatly facilitates the network management and maintenance of network administrators.
Compliant with standard OMCI definition and China Mobile Intelligent Home Gateway Standard, AFGN-04GS-VXW GPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.
· Support 《Technical Specification for Intelligent Home Gateway of China Mobile》
· Support JVM
· Support the list of packages of Java SE Embedded compact1 profile
· Support OSGi
· Support China Mobile Intelligent Home Gateway Smart Plug-in and APP
l Complies with IEEE 802.11 a/b/g/n/ac/ax standards.
l Supports 20/40M bandwidth in the 2.4G band and 20/40/80M bandwidth in the 5G band.
l 2T2R in 2.4G + 2T2R in 5G, supports up to 573+1201Mbps PHY rate.
l MU-MIMO TX/RX support.
l Supports MU-OFDMA TX/RX.
l Can be configured as 2x2 MIMO A band, or 2x2 MIMO G band, or 2x2 MIMO A band + 2x2 MIMO G band.
l Supports global Wi-Fi 5G channels, including the new band (5925MHz) in the US and China.
l Integrated 2.4GHz/5GHz PA, LNA and TRSW.
l Integrated power detector to support Tx power control per packet.
l Built-in calibration of PVT variations
The AFGN-04GS-VXW ONT is delivered with 4 * 10/100/1000 Base-T interface, supporting:
Auto-negotiation and MDI/MDIX auto-sensing
Built-in layer-2 switch
Advanced data features such as VLAN tag manipulation, classification, and filtering
Built-in layer-3 routing and residential gateway
2.4GHz 300Mbps + 5GHz 867Mbps WLAN interface
USB x 2
The AFGN-04GS-VXW ONT supports video contents delivered in the form of data (by multicast or unicast).
The AFGN-04GS-VXW ONT can optionally be delivered with two POTS interface port for carrier-grade voice services,
supporting:
Multiple voice codec
Echo Cancelling, VAD, CNG
Supporting static or dynamic jitter buffer
Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.SIP (RFC3261)
MEGACO v2 (H.248), To enable VoIP access, the AFGN-04GS-VXW ONT also supports interfacing external IAD box or Home Router with voice capability through the Ethernet Interface.
|
Optical SPEC |
Working wavelength |
nm |
PON：TX1310，RX1490; |
|
The light emitting power |
dBm |
1~ +4(GPON) |
|
|
The light receiving sensitivity |
dBm |
≥ -27 |
|
|
Optical fiber connector |
/ |
PON：SC/UPC Or SC/APC |
|
|
Port |
The user side Ethernet ports |
/ |
4GE |
|
USB |
/ |
2 |
|
|
POTS |
/ |
1 |
|
|
WiFi6 |
2.4G WiFi |
/ |
IEEE 802.11 a/b/g/n/ac/ax 573+1201Mbps |
|
5G WiFi |
/ |
||
|
Other |
The power supply |
V/A |
AV110～255V→DC12V 1.5A |
|
Work temperature |
℃ |
-5～40 |
12V (feed via external AC/DC adapter)
2-PIN power adaptor input
Dying Gasp support
Compliant with ITU-T G.984 GPON standards
BoSA on board optical solution
1.244 Gbps Burst Mode Upstream Transmitter
2.488 Gbps Downstream Receiver
Compliant with ITU-T G.984.2 Amd1, Class B+
Wavelengths: US 1310nm, DS 1490nm
Multiple T-CONTs per device
Multiple GEM Ports per device
Flexible mapping between GEM Ports and T-CONT
Activation with automatic discovered SN and password in conformance with ITU-T G.984.3
AES-128 Decryption with key generation and switching
FEC (Forward Error Correction) in both directions
DBA reporting by piggyback reports in the DBRu (mode 0 and mode 1)
Mapping of GEM Ports into a T-CONT with priority queues based scheduling
Support Multicast GEM port and incidental broadcast GEM port.
4GE
Ethernet port auto negotiation or manual configuration
MDI/MDIX automatically sense
Virtual switch based on 802.1Q VLAN
VLAN tagging/detagging per Ethernet port
Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.988
Alarming and performance monitoring
Remotely software image download over OMCI, as well as activation and rebooting
Hold two software sets with software image integrity checking and automatic rollback
