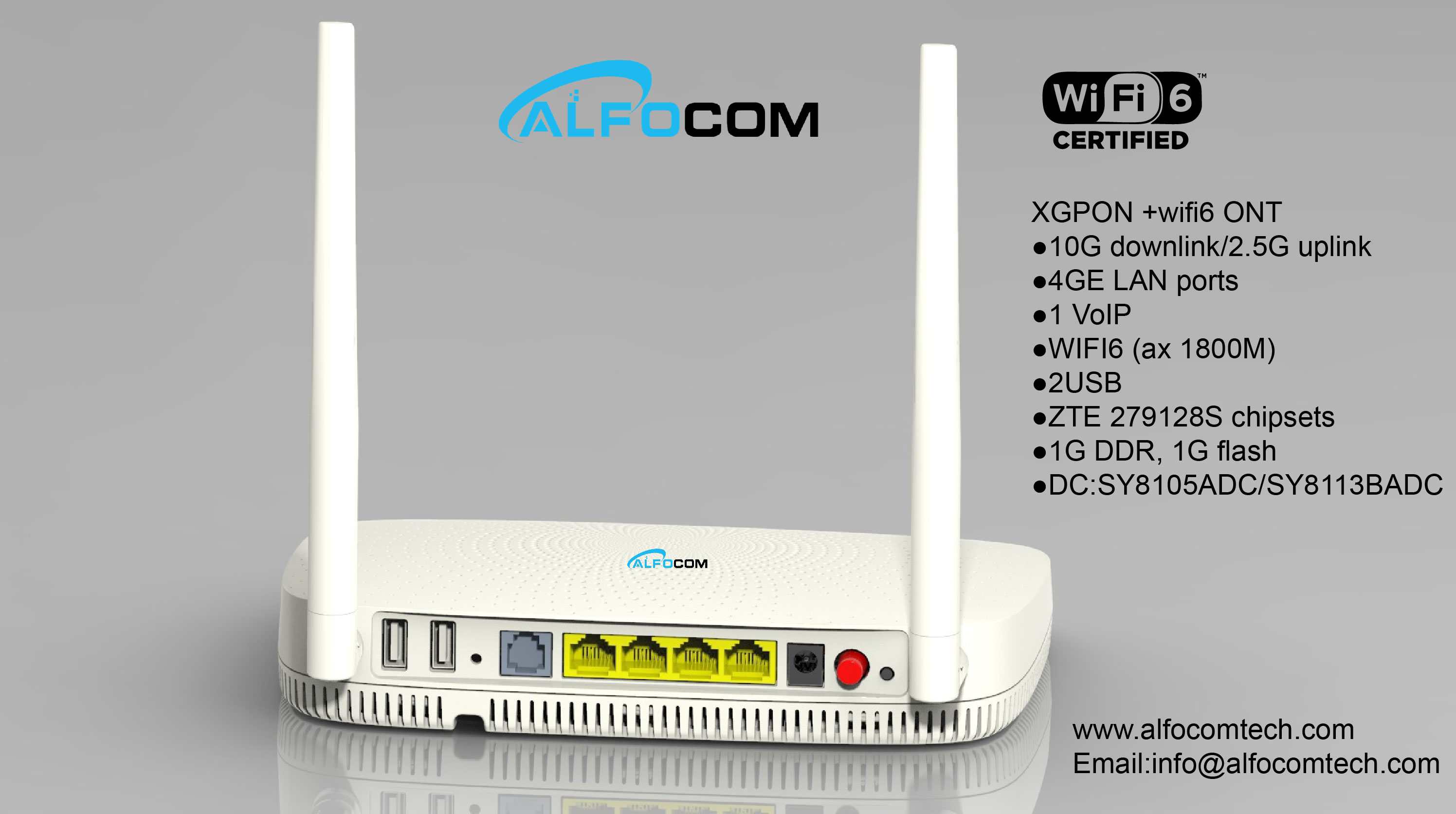

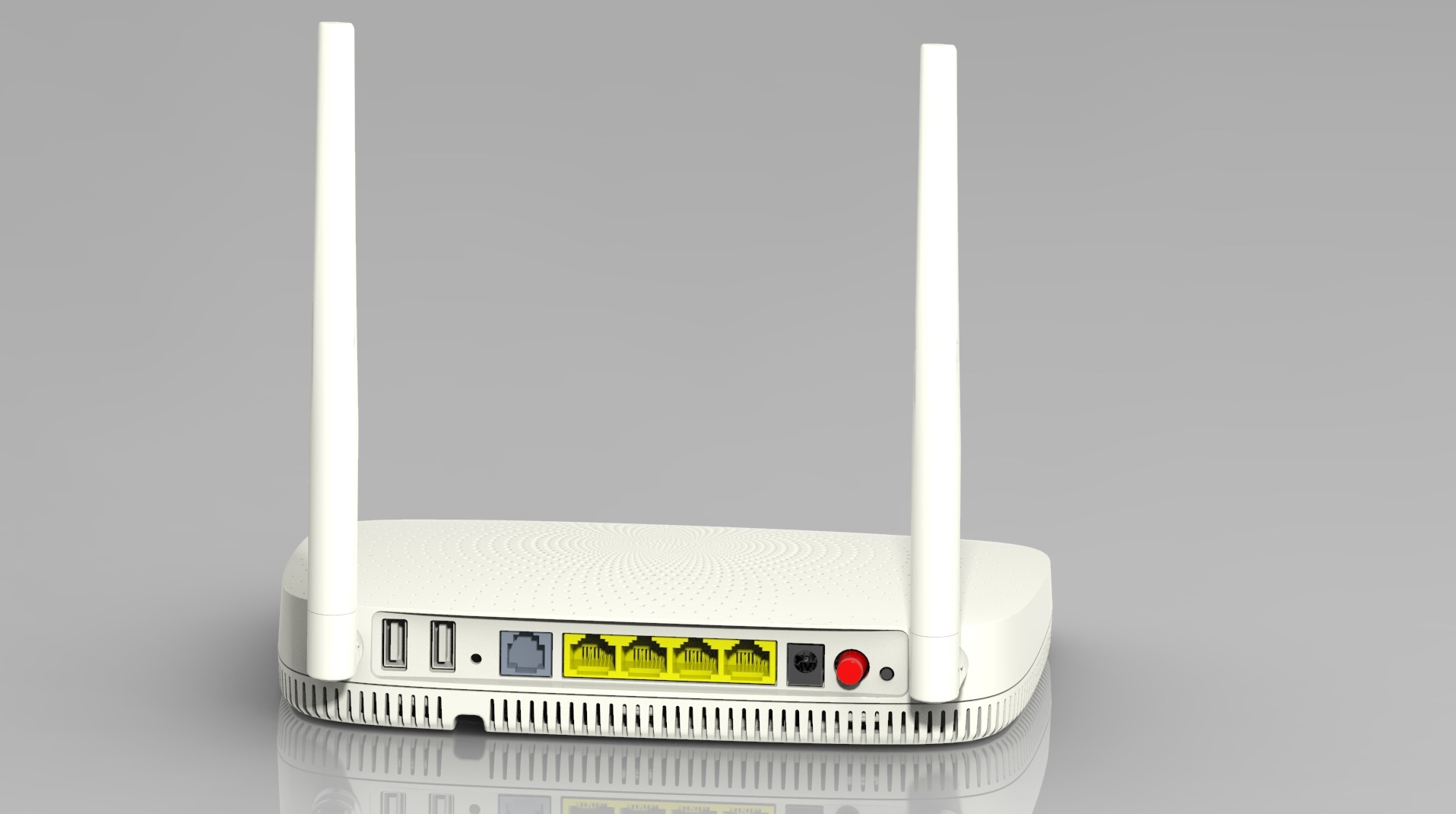

AFXG-4100XW

XGPON+WIFI6 ONT

4GE+1VOIP+2USB

WiFi6 1800Mbps

802.11 a/b/g/n/ac/ax

Overview

To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application, AFXG-4100XW XGPON WIFI6 ONT incorporates interoperability, key customers’ specific requirements and cost-efficiency.

AFXG-4100XW integrates XGPON (supports uplink 2.48832Gbps and downlink 9.98328Gbps asymmetric rate), routing, switching, security, WiFi6 (802.11 a/b/g/n/ac/ax), VoIP and USB functions in one, which can support security management, security management and USB functions while satisfying users' basic broadband Internet access. Content filtering and other functions, and supports WEB graphical management, OAM/OMCI and TR069 network management functions, which greatly facilitates network management and maintenance of network administrators.

Compliant with standard OMCI definition and China Mobile Intelligent Home Gateway Standard, AFXG-4100XW XGPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

Features

· Support 《Technical Specification for Intelligent Home Gateway of China Mobile》

· Support JVM

· Support the list of packages of Java SE Embedded compact1 profile

· Support OSGi

· Support China Mobile Intelligent Home Gateway Smart Plug-in and APP

XGPON

Ÿ Supports upstream 2.48832bps and downstream 9.98328Gbps asymmetric rates.

Ÿ Support G.984.3, G.987.3, G.989, IEEE 802.3, G.988 and other protocols;

Ÿ Provide traffic management, QoS, multicast, encryption and decryption, service flow classification, bridging, NAT/NAPT, PPPoE, gateway processing and other service processing functions;

WiFi6

l  Complies with IEEE 802.11 a/b/g/n/ac/ax standards.

l  Supports 20/40M bandwidth in the 2.4G band and 20/40/80M bandwidth in the 5G band.

l  2T2R in 2.4G + 2T2R in 5G, supports up to 573+1201Mbps PHY rate.

l  MU-MIMO TX/RX support.

l  Supports MU-OFDMA TX/RX.

l  Can be configured as 2x2 MIMO A band, or 2x2 MIMO G band, or 2x2 MIMO A band + 2x2 MIMO G band.

l  Supports global Wi-Fi 5G channels, including the new band (5925MHz) in the US and China.

l  Integrated 2.4GHz/5GHz PA, LNA and TRSW.

l  Integrated power detector to support Tx power control per packet.

l  Built-in calibration of PVT variations

Services

Data

The AFXG-4100XW ONT is delivered with 4 * 10/100/1000 Base-T interface, supporting:

Ÿ   Auto-negotiation and MDI/MDIX auto-sensing

Ÿ   Built-in layer-2 switch

Ÿ   Advanced data features such as VLAN tag manipulation, classification, and filtering

Ÿ   Built-in layer-3 routing and residential gateway

Ÿ   2.4GHz 300Mbps + 5GHz 867Mbps WLAN interface

Ÿ   USB x 2

Video

The AFXG-4100XW ONT supports video contents delivered in the form of data (by multicast or unicast).

Voice

Ÿ Multiple voice codec

Ÿ Echo Cancelling, VAD, CNG

Ÿ Supporting static or dynamic jitter buffer

Ÿ Various CLASS services - Caller ID, Call Waiting, Call Forwarding, Call Transfer, etc.SIP (RFC3261)

Ÿ MEGACO v2 (H.248)

To enable VoIP access, the AFXG-4100XW ONT also supports interfacing external IAD box or Home Router with voice capability through the Ethernet Interface.

Specification

Power Supply

Ÿ   12V (feed via external AC/DC adapter)

Ÿ   2-PIN power adaptor input

Ÿ   Dying Gasp support

Ethernet Interface

Ÿ   4GE

Ÿ   Ethernet port auto negotiation or manual configuration

Ÿ   MDI/MDIX automatically sense

Ÿ   Virtual switch based on 802.1Q VLAN

Ÿ   VLAN tagging/detagging per Ethernet port

OAM

Ÿ   Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.988

Ÿ   Alarming and performance monitoring

Ÿ   Remotely software image download over OMCI, as well as activation and rebooting

Ÿ   Hold two software sets with software image integrity checking and automatic rollback
