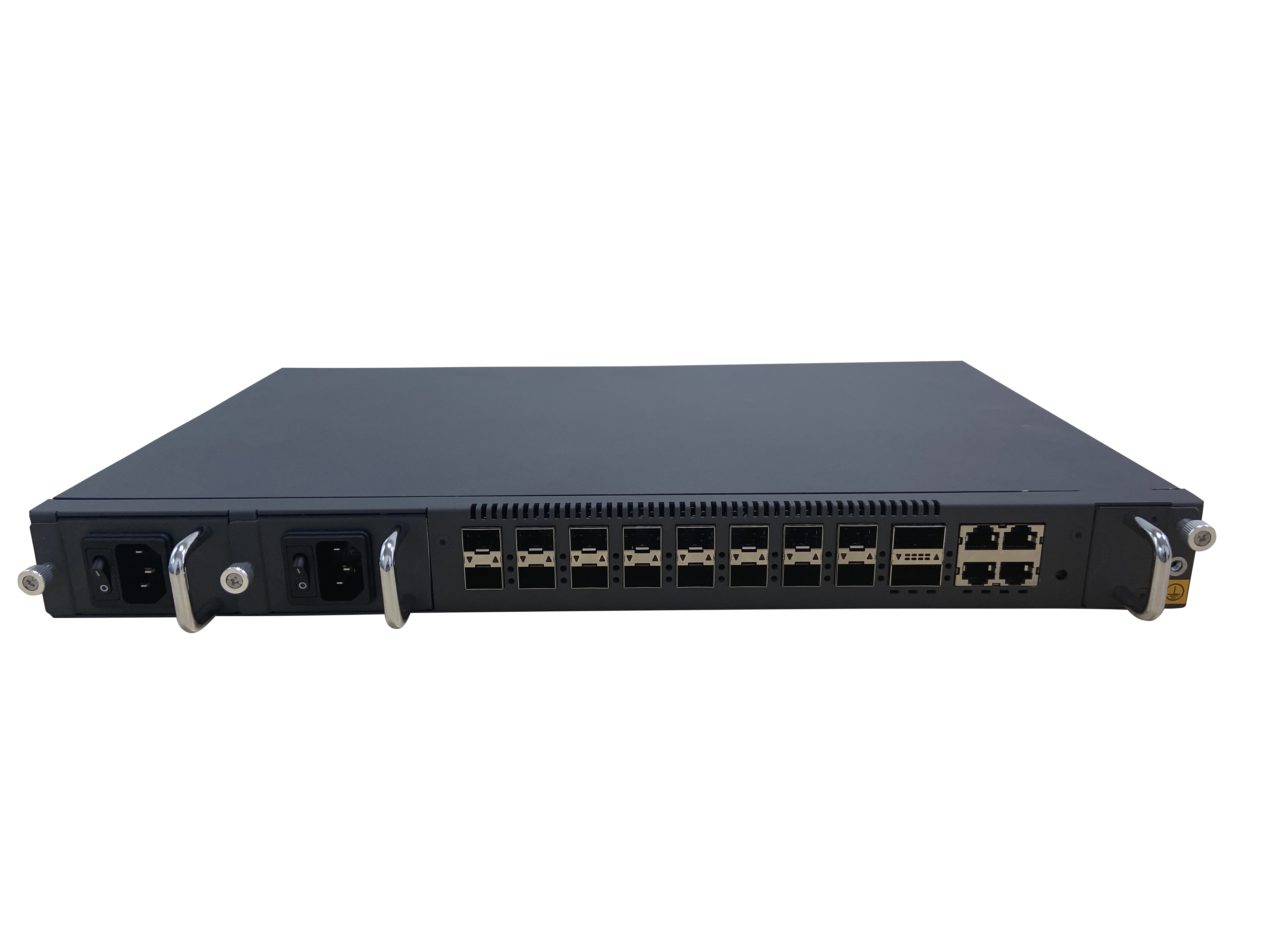

AFC3408P XG(S)-PON Combo OLT
Product overview:
AFC3408P OLT is a highly integrated, large-capacity XG(S)-PON OLT for Telecom operators, ISPs, enterprises, and campus applications. The product follows the ITU-T G.987/G.988 technical standard, and the product has good openness, strong compatibility, high reliability and complete software functions. It can be widely used in the construction of access networks such as operator FTTH access, VPN, government and enterprise park access, and campus network access.
The height of AFC3408P OLT is only 1U, which is convenient for installation and maintenance and saves space. The equipment adopts the industry's advanced technology to provide customers with reliable solutions, with efficient bandwidth utilization and Ethernet service support capabilities, helping operators to provide users with reliable service quality. Supports mixed networking of different types of ONUs, providing cost-effective solutions for network operators.
Features:
Rich Layer 2 and Layer 3 switching features and flexible management methods
Support multiple link redundancy protocols such as FlexLink/STP/RSTP/MSTP/ERPS/LACP
Support RIP、OSPF、BGP、ISIS、IPV6
Safe DDOS and virus attack protection
Support power redundancy backup, support power pluggable
Support ONU automatic registration
Support power failure alarm
Product Specifications
Attributes | XG(S)-PON Combo OLT |
Exchange Capacity | 104Gbps |
Packet Forwarding Rate | 77.376Mpps |
Memory and Storage | Memory：2GB，Storage：8GB |
Management Port | 1 * Console Port |
Fixed Port | 8*XG(S)-PON/GPON port, 8*10GE/GE SFP + 2*100G QSFP28 |
PON | Compliant with ITU-T G.987/G.988 standard 100 KM transmission distance 1:256 maximum splitting ratio Standard OMCI management functions Flexibly compatible with any brand of ONT ONU batch software upgrade |
VLAN | Support 4K VLAN 802.1Q Supports VLAN based on port, MAC and protocol Support dual Tag VLAN function, port-based static QinQ and flexible QinQ functions |
MAC | Support 128K MAC address table entries Support static MAC address setting Support black hole MAC address filtering function Support port MAC address limit |
Ring Network Protocol | Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection |
Port control | Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding |
Port Aggregation | Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports |
Mirroring | Support port mirroring Support stream mirroring |
ACL | Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc. |
QoS | Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR |
Security | Support user hierarchical management and password protection Support IEEE 802.1X authentication and Centralized MAC address authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support SSH 2.0, provide a secure encrypted channel for user login Support SNMP v3 encryption management Support port isolation, hardware isolation of packets between ports Support broadcast packet rate suppression Support IP Source Guard to automatically create IP+MAC+Port+VLAN binding table, and support manual binding table entry Support DHCP Option82 and PPPoE+ Supports automatic suppression of ARP flooding attacks and ARP spoofing protection Support control layer to prevent various DOS attacks and virus attacks against CPU |
Layer 3 | Support ARP learning and aging Supports creating VLAN Layer 3 interfaces and configuring static IPv4/IPv6 addresses Support static routing configuration Support RIP/OSPF protocol function Support VRRP protocol function |
System management | Support Console/Telnet/SSH2.0 command line configuration Support WEB browser configuration management Support FTP, TFTP file upload and download management Support SNMP V1/V2/V3 Support RMON Support SNTP clock Support system work log Support LLDP Neighbor Device Discovery Protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog function Support Ping and Traceroute |
Environment temperature | Operating ambient temperature: -10℃～55℃ Storage environment temperature: -40℃～70℃ |
Environment humidity | Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing) |
Environment friendly | RoHs EEE |
Weight | 9KG |
Fan | Hot-swappable, adjustable speed (3) |
Power | AC： 100～240V 47/63Hz； DC： 36V～75V； |
Purchasing Information
|
|
AFC3408P | 8*XG(S)-PON/GPON port, 8*10GE/GE SFP + 2*100G QSFP28, Dual power pluggable. |
