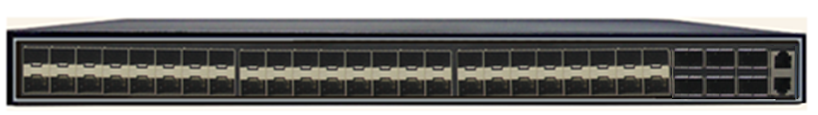

AFS6862-54XC Full 10G 100G L3 Switch

AFS6862-54XC Full 48*10 Gigabit Access 100G Layer 3 Switch

Features:

Ÿ Ultra-high density 10 Gigabit optical port access,48*10 Gigabit optical ports,2*40Goptical ports,4*100Goptical ports;

Ÿ 1.92T super high switching capacity to meet the ultra-high bandwidth application requirements of operator aggregation, enterprise network and data center

Ÿ Support rich service features, L2,L3,MPLS,VxLAN,OAM/APSand other features

Ÿ Supports security and flow control features, hardware-based NetFlow, and high-precision clock features

Ÿ Support elastic stacking function to achieve unified management, upgrade and maintenance of multiple devices;

Ÿ Modular design of the whole machine, pluggable design of fans and power supply components;

Ÿ Support IPv4/IPv6 dual-stack platform, support RIP/OSPF/RIPng/OSPFv3/PIM and other routing protocols

Ÿ Support VRRP/ERPS/MSTP/FlexLink/MonitorLink and other link redundancy and network redundancy protocols;

Ÿ Support ACL security filtering mechanism, provide MAC, IP, L4 port and port level security control functions

Ÿ Support Ethernet OAM802.3ag(CFM),802.3ah(EFM) and other Ethernet link detection mechanisms

Ÿ Supports remote user authentication based on Tacacs+/Radius, and supports Local user authentication

Ÿ Supports SP/WRR/SP+WRR priority algorithm to ensure the transmission of various priority traffic flows on demand

Ÿ Support IPv4/IPv6 static routing function;

Ÿ Supports multi-port mirroring analysis and service flow-based image analysis.

Ÿ Support static and flexible QinQfunction;

Ÿ Support IPV4/6unicast routing in the policy, support flexible forwarding policy;

Ÿ Supports CLI command line management based on serial port, Telnet, and SSHv2 mode

Ÿ Support RFC1213 SNMP network management;

Ÿ Supports configuration management based on WEB pages;

Product Specifications:

Physical Interface:

Ÿ 10 Gigabit optical port: 48*10 Gigabit optical ports, 10 Gigabit optical port adaptive connection Gigabit optical, type SFP/SFP+/LC;

Ÿ Uplink optical ports: 2 40 uplink optical ports, type QSFP. 4 x 100 uplink optical ports, type QSFP28;

Ÿ Console port: manage serial port, used for command line management, type RS232;

Ÿ AUX debug port: out-of-band management interface for Telnet/SSH/WEB login control, type RJ45;

Working environment:

Ÿ Operating temperature: -15C°~55C°;

Ÿ Storage temperature: -40C°~70C°;

Ÿ Relative humidity: 10%~90%, non-condensing;

Power consumption:

Ÿ Power supply specifications: 1+1 redundant power supply, AC/DC optional;

Ÿ Input power: AC: input 90~ 264V, 47 ~ 67Hz; DC: -36V~ -72V；

Ÿ Power consumption of the whole machine: full load power consumption ≤ 180W, idle power consumption ≤25W;

Mechanical structure:

Ÿ Chassis shell: metal shell, air-cooled heat dissipation;

Ÿ Power supply fan: modular design of power supply and fan, support hot swappable, support fan speed control and alarm detection;

Ÿ Chassis size: dimensions (length * width * height) (mm) 440 * 390 * 44;

Ÿ Installation: Standard 19 inch 1U rackmount installation
