Ethernet Switch

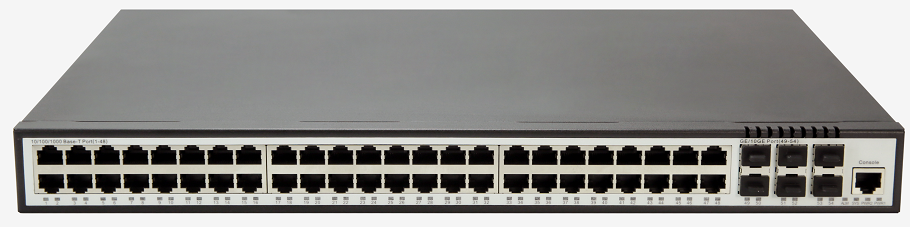

AFS5710-54TX 48GE L3 Switch

48*10/100/1000M Base-T
6*1000M Base-X SFP/10GE SFP+
216Gbps exchange capacity
160Mbps Packet forwarding rate
Description: AFS5710-54TX Layer 3 Switch
Inquiry

AFS5710 Series Layer 3 Switch

Porduct overview:

The AFS5710 series switch is a layer 3 Ethernet switch, which can meet the needs of cost-effective Gigabit access and 10 Gigabit uplink for enterprise networks and operator customers. AFS5710 uses a high-performance low-power network processor, provides Gigabit line-speed forwarding performance, supports green Ethernet line sleep capability, has the lowest power consumption of the same-level equipment in the industry, supports powerful QoS and ACL functions, and supports IP+MAC+ Security features such as port binding support service flow classification and packet priority marking. Support static data packet sampling, SFLOW function, support multi-port mirroring analysis function, support static and flexible QinQ function, support Ethernet OAM 802.3ag (CFM), 802.3ah (EFM), support strategy-based IPV4/6 unicast routing, support Flexible forwarding strategy.

FC-AFS5710 Including the following models

AFS5710-54TX：48*10/100/1000M Base-T，6*1000M Base-X SFP/10GE SFP+, Dual Power;

Product Feature:

Carrier-level equipment stability

Based on Linux operating system，support IPv4/IPv6 dual protocol stack platform

Support multiple link redundancy and network redundancy protocols such as

STP/RSTP/MSTP/ERPS/LACP

Perfect safety mechanism

Support ACL security filtering mechanism, which can provide security control

functions based on MAC, IP, L4 port

Support ARP attack automatic protection and user blocking functions

Support DHCP attack automatic protection based on Mac Address and user

blocking functions

Support DDOS and virus attack protection

Support DHCP-snooping/IP-source-Guard/802.1X and other security features

Support link protection functions such as BFD, FlexLink, LACP and ERRP

Support remote loop detection function

Support CFM、EFM

Support remote user authentication based on Tacacs+, Radius, and Local user

Authentication

Powerful QoS capabilities

Support port speed and flow speed limit function

Support classification based on service flow and Qos flow control function

Support queue scheduling algorithms such as SP/WRR/SP+WRR

Support port-based and service flow-based mirroring functions

Enhanced multi-service capabilities

Support DHCP Server and DHCP Relay

Support L2-Tunnel

Support Ethernet OAM protocol such as CFM、EFM

Rich routing protocol

Support static route

Support dynamic route such as RIP, OSPF,BGP, ISIS

Support IPV4/IPV6 dual protocol stack，Support RIPng、OSPFv3

Simple and easy-to-use network management function

Support CLI based on RS232 serial port, Telnet and SSHv2

Support WEB-based configure operation management, support SNMP V1/V2/V3

Support remote upgrade or equipment through FTP and TFTP

Hardware specifications:

Attributes	AFS5710-28TX	AFS5710-28TP	AFS5710-54TX
Port	2410/100/1000M Base-T，41000M Base-X SFP/10GE SFP+	2410/100/1000M Base-T POE，41000M Base-X SFP/10GE SFP+	4810/100/1000M Base-T， 61000M Base-X SFP/10GE SFP+,
Exchange capacity	128Gbps	128Gbps	216Gbps
Packet forwarding rate	95Mbps	95Mbps	160Mbps
MAC	16K	16K	32K
Multicast	1K	1K	4K
Route	512	512	12K
Memory and storage	Memory：512MB, storage：32MB
power	AC： 100～240V 47/63Hz； DC： 36V～75V；
Power consumption	≤22W	≤450W	≤53W
weight	≤3kg	5kg	≤5kg
Dimensions (Width * height * depth)	440X210X44	440X270X44	440×290×44
Environment temperature	Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃

Software specifications:

Attributes		AFS5710-28TX/28TP/54TX
VLAN	Support 4K VLAN Support Vlan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and fiexible QinQ
MAC	16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit
ring network protocol	Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection
port control	Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding
Port aggregation	Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports
Mirroring	Support port mirroring Support stream mirroring
ACL	Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS	Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR
Safety	Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection
Layer 3	Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP
System management	CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and downdload Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute
