AFS5863-24X2C Full 10G L3 Switch

24*10G SFP+
2*40G QSFP /2*100G QSFP28
880Gbps exchange capacity
654Mbps Packet forwarding rate
Description: FC-AFS5863-24X2C Full 10GE Layer 3 Switch
Inquiry

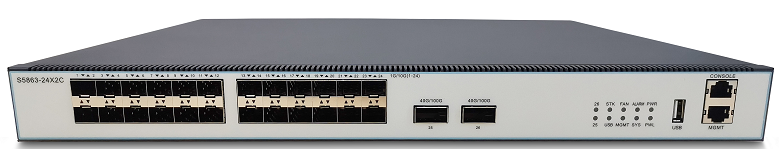

FC-AFS5863-24X2C Layer 3 Switch

The AFS5863-24X2C switch is a high-performance full 10G access, 40G and 100G uplink core routing Layer 3 switch product. It can not only meet the high-density and high-bandwidth network application requirements of the next-generation enterprise network, data center and metropolitan area network, but also meet the application requirements of telecom network operators or campus Ethernet aggregation layer or access layer, and can also be used as a data center connection layer. The entry layer and the core layer of small and medium-sized enterprises provide rich server access solutions for the data center.

The AFS5863-24X2C switch supports rich service features, including L2, L3, MPLS, VXLAN, OAM/APS and other features, supports security and flow control features, hardware-based NetFlow, and high-precision clock features.

The product has an elastic stacking function, which virtualizes multiple devices into one logical entity, which can not only meet the expansion of ports and switching capacity, but also realize the unified management, upgrade, and maintenance of multiple devices. In response to the requirements of large data traffic and non-blocking transmission in the data center, the product can provide a strong cache capacity, and support an advanced cache scheduling mechanism to ensure the maximum effective use of the device cache capacity. It is designed to meet the high-density and high-bandwidth network application requirements of next-generation enterprise networks, data centers and metropolitan area networks. It can be applied to network operators or campus Ethernet aggregation layer or access layer, and can also be used as data center access layer, small and medium-sized enterprise core layer, and provides rich server access solutions for data centers.

FC-AFS5863-24X2C Layer 3 Switch

AFS5863-24X2C：24*10G SFP+，2*40G QSFP /2*100G QSFP28，1+1 modular redundant power supply, modular fan;

Product Feature:

Carrier-level equipment stability

support IPv4/IPv6 dual protocol stack platform

Support multiple link redundancy and network redundancy protocols such as

STP/RSTP/MSTP/ERPS/LACP

Perfect safety mechanism

Support ACL security filtering mechanism, which can provide security control

functions based on MAC, IP, L4 port

Support ARP attack automatic protection and user blocking functions

Support DHCP attack automatic protection based on Mac Address and user

blocking functions

Support DDOS and virus attack protection

Support DHCP-snooping/IP-source-Guard/802.1X and other security features

Support link protection functions such as BFD, FlexLink, LACP and ERRP

Support remote loop detection function

Support CFM、EFM

Support remote user authentication based on Tacacs+, Radius, and Local user

authentication

Powerful QoS capabilities

Support port speed and flow speed limit function

Support classification based on service flow and Qos flow control function

Support queue scheduling algorithms such as SP/WRR/SP+WRR

Support port-based and service flow-based mirroring functions

Enhanced multi-service capabilities

Support DHCP Server and DHCP Relay

Support L2-Tunnel

Support Ethernet OAM protocol such as CFM、EFM

Rich routing protocol

Support static route

Support dynamic route such as RIP, OSPF,BGP, ISIS

Simple and easy-to-use network management function

Support CLI based on RS232 serial port, Telnet and SSHv2

Support WEB-based configure operation management, support SNMP V1/V2/V3

Support remote upgrade or equipment through FTP and TFTP

Hardware specifications:

ITEM	AFS5863-24X2C
Port	241000M Base-X SFP/10GE SFP+, 240G QSFP/2*100G QSFP28
Exchange capacity	880Gbps
Packet forwarding rate	654Mbps
Memory and storage	Memory :1G, storage：128MB
power	AC： 100～240V 47/63Hz； DC： 36V～75V；
Power consumption	≤125W
weight	≤3.5kg
Dimensions (Width * height * depth)	440×320×43.6
Environment temperature	Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃

Software specifications:

Attributes		AFS5710-28TX/28TP/54TX
VLAN	Support 4K VLAN Support Vlan based on port, MAC and protocol Support dual Tag VLAN, port-based static QinQ and fiexible QinQ
MAC	16K Mac address Support static MAC address setting Support black hole MAC address filtering Support port MAC address limit
ring network protocol	Support STP/RSTP/MSTP Support ERPS Ethernet ring network protection protocol Support Loopback-detection port loopback detection
port control	Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding
Port aggregation	Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports
Mirroring	Support port mirroring Support stream mirroring
ACL	Support standard and extended ACL Support ACL policy based on time period Provide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS	Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR
Safety	Support user hierarchical management and password protection Support IEEE 802.1X authentication Support Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection
Layer 3	Support ARP learning and aging Support static route Support dynamic route RIP/OSPF/BGP/ISIS Support VRRP
System management	CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and downdload Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute
